Mazda CX-3: Installing Child-Restraint Systems / Anchor Bracket

Mazda CX-3 (2015-2022) Owner's Manual / Essential Safety Equipment / Child Restraint / Installing Child-Restraint Systems / Anchor Bracket

Anchor brackets for securing child-restraint systems are equipped in the vehicle. Locate each anchor position using the illustration.

To install a child-restraint system, remove the head restraint. Always follow the instruction manual accompanying the child-restraint system.

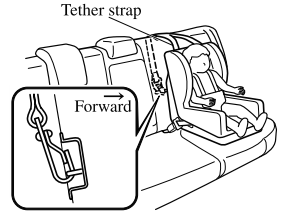

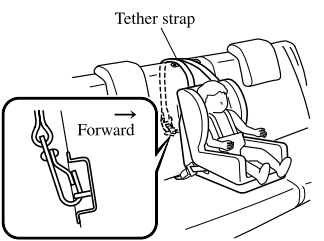

Anchor bracket location

Use the indicated anchor bracket locations when installing a child-restraint system equipped with a tether.

Mazda CX-3. Anchor Bracket

WARNING

Always attach the tether strap to the correct tether anchor position: Attaching the tether strap to the incorrect tether anchor position is dangerous. In a collision, the tether strap could come off and loosen the child-restraint system. If the child-restraint system moves it could result in death or injury to the child.

Always remove the head restraint and install child-restraint system: Installing a child-restraint system without removing the head restraint is dangerous. The child-restraint system cannot be installed correctly which may result in death or injury to the child in a collision.

Mazda CX-3. Anchor Bracket

Mazda CX-3. Anchor Bracket

Always install the head restraint and adjust it to the appropriate position after removing the child-restraint system: Driving with the head restraint removed is dangerous as impact to the occupant's head cannot be prevented during emergency braking or in a collision, which could result in a serious accident, injury or death.

Refer to Head Restraints.

    Installing Child-Restraint Systems

    Accident statistics reveal that a child is safer in the rear seat. The front passenger's seat is clearly the worst choice for any child under 12, and with rear-facing child-restraint systems it is clearly unsafe due to air bags...

    Using Automatic Locking Mode (Except Mexico)

    Follow these instructions when using a child-restraint system, unless you are attaching a LATCH-equipped child-restraint system to the rear LATCH lower anchors...
