Mazda CX-3: SRS Air Bags / Limitations to SRS Air Bag

Mazda CX-3 (2015-2022) Owner's Manual / Essential Safety Equipment / SRS Air Bags / Limitations to SRS Air Bag

In severe collisions such as those described previously in "SRS Air Bag Deployment Criteria", the applicable SRS air bag equipment will deploy. However, in some accidents, the equipment may not deploy depending on the type of collision and its severity.

Limitations to front/near front collision detection:

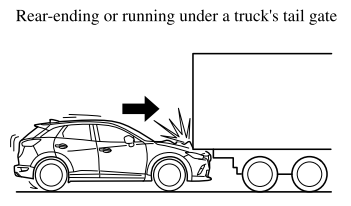

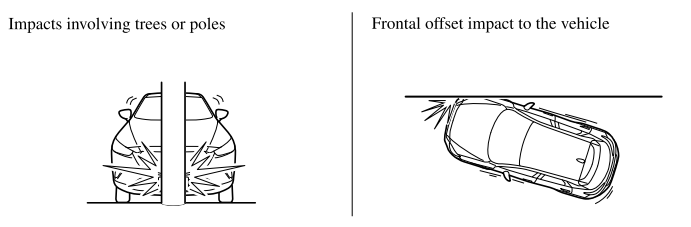

The following illustrations are examples of front/near front collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Mazda CX-3. Limitations to SRS Air Bag

Mazda CX-3. Limitations to SRS Air Bag

Limitations to side collision detection:

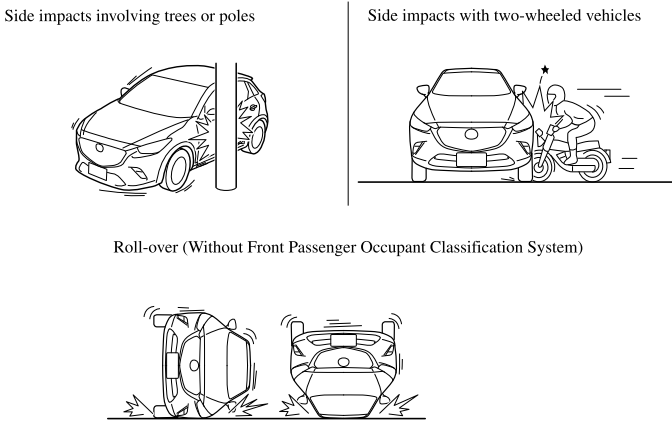

The following illustrations are examples of side collisions that may not be detected as severe enough to deploy the SRS air bag equipment.

Mazda CX-3. Limitations to SRS Air Bag

(With Front Passenger Occupant Classification System)

Limitations to roll-over detection:

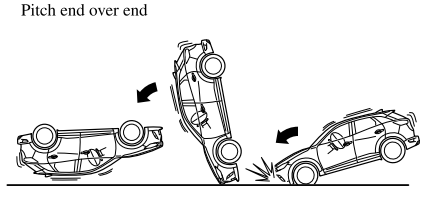

The following illustration is an example of an accident that may not be detected as a roll-over accident. Therefore, the front seat belt pretensioners and curtain air bags may not deploy.

Mazda CX-3. Limitations to SRS Air Bag

    SRS Air Bag Deployment Criteria

    This chart indicates the applicable SRS equipment that will deploy depending on the type of collision. (The illustrations are the representative cases of collisions...

    Front Passenger Occupant Classification System (Some models)

    First, please read "Supplemental Restraint System (SRS) Precautions" carefully. Front Passenger Occupant Classification Sensor Your vehicle is equipped with a front passenger occupant classification sensor as a part of the supplemental restraint system...
