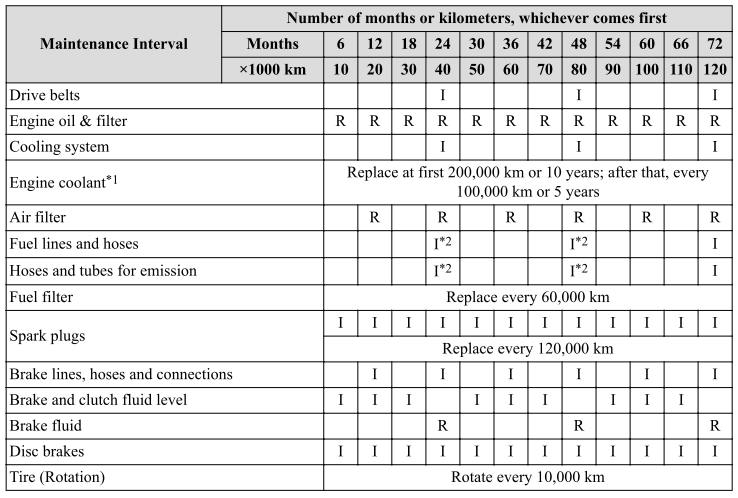

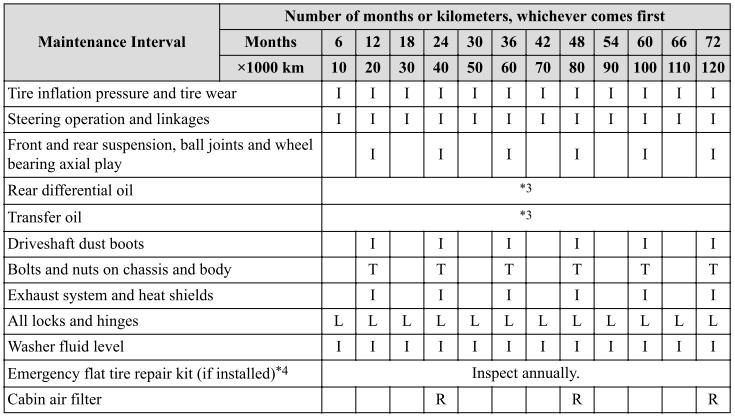

Mazda CX-3: Scheduled Maintenance (Mexico) / Schedule 1
![Mazda CX-3. Schedule 1](images/schedule_1-390/1/mazda_cx_3__schedule_1_898.jpg)
![Mazda CX-3. Schedule 1](images/schedule_1-390/1/mazda_cx_3__schedule_1_899.jpg)
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if
necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant. Using engine
coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*2 According to state/provincial and federal regulations, failure to perform
maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance
services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*3 If this component has been submerged in water, the oil should be replaced.
*4 Check the tire repair fluid expiration date every year when performing the
periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Follow Schedule 1 if the vehicle is operated mainly where none of the
following conditions
(severe driving conditions) apply.
Repeated short-distance driving
Driving in dusty conditions
Driving with extended use of brakes
Driving in areas where salt or other corrosive materials are used
Driving on rough or muddy roads
Extended periods of idling or low-speed operation
Driving for long periods in cold temperatures or extremely humid
climates
Driving in extremely hot conditions
Driving in mountainous conditions continually
If any do apply, follow Schedule 2...
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if
necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1 Use of FL-22 is recommended when replacing engine coolant...
Other information:
WARNING
When jacking-up a vehicle, always shift the
shift lever to 1st or R position (manual
transaxle vehicle) or shift the selector lever
to P position (automatic transaxle vehicle),
apply the parking brake, and place wheel
blocks in the position diagonally opposed
to the jack: Changing a flat tire without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the shift lever in 1st or R position, or the
selector lever is in P position, which could
result in an accident...
Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.
NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.
The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional
tire...
