Mazda CX-3: Hood / Closing the Hood

Mazda CX-3 (2015-2022) Owner's Manual / Maintenance and Care / Owner Maintenance / Hood / Closing the Hood

  1. Check under the hood area to make certain all filler caps are in place and all loose items (e.g. tools, oil containers, etc.) have been removed.

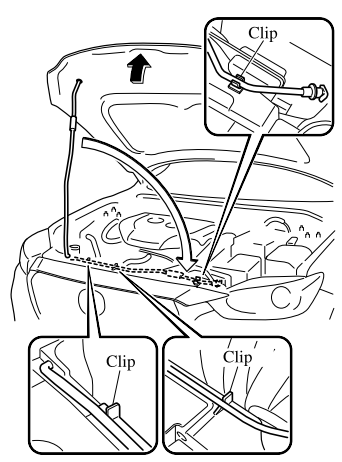

  2. Lift the hood, grasp the padded area on the support rod, and secure the support rod in the clip. Verify that the support rod is secured in the clip before closing the hood.

    Mazda CX-3. Closing the Hood

  3. Lower the hood slowly to a height of about 20 cm (7.9 in) above its closed position and then let it drop.

CAUTION

When closing the hood, do not push it excessively such as by applying your weight. Otherwise, the hood could be deformed.

    Opening the Hood

    With the vehicle parked, pull the release handle to unlock the hood. Insert your hand into the hood opening, slide the latch lever to the right, and lift up the hood...

    Engine Compartment Overview

    ..
