Mazda CX-3: Warning/Indicator Lights / Warning Lights

Mazda CX-3 (2015-2024) Owner's Manual / When Driving / Instrument Cluster and Display / Warning/Indicator Lights / Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system malfunction.

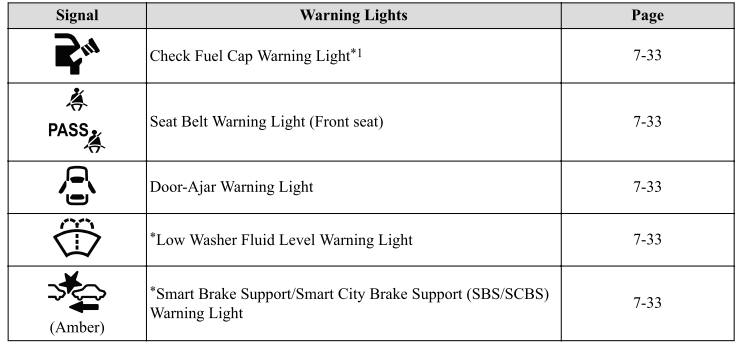

Mazda CX-3. Warning Lights

Mazda CX-3. Warning Lights

Mazda CX-3. Warning Lights

*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an Authorized Mazda Dealer.

*2 The light turns on continuously when the parking brake is applied.

    Warning/Indicator Lights

    I..

    Indicator Lights

    These lights turn on or flash to notify the user of the system operation status or a system malfunction. *1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or when the engine is started...
