Mazda CX-3: How to use Android Auto™ mode (Some models) / How to use the Android Auto™ mode
Insert an Android™ Smartphone-genuine connector cord into the USB terminal
indicated by
the
icon to connect the
Smartphone.
Refer to How to connect USB port/Auxiliary jack.
NOTE
- When an Android™ Smartphone connected to Bluetooth® is connected to the vehicle's USB terminal, Bluetooth® is used by Android Auto™ and the system switches to Android Auto™ mode.
- If the Android™ Smartphone is connected to a USB terminal with no
icon indicated,
the system operates in USB mode.
Display of Android Auto™ Mode Screen
Use any of the following methods to display the Android Auto™ mode screen in the center display.
- Select
on the home screen,
and select
from the
Applications screen. - Select
on the home screen. - Press and hold
on the
commander switch.

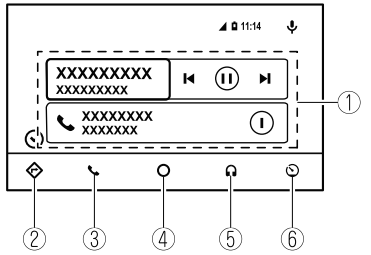

Android Auto™ mode home screen
NOTE
The media displayed on the Android Auto™ home screen may differ depending on the use conditions and version of the connected Android™ Smartphone.
`

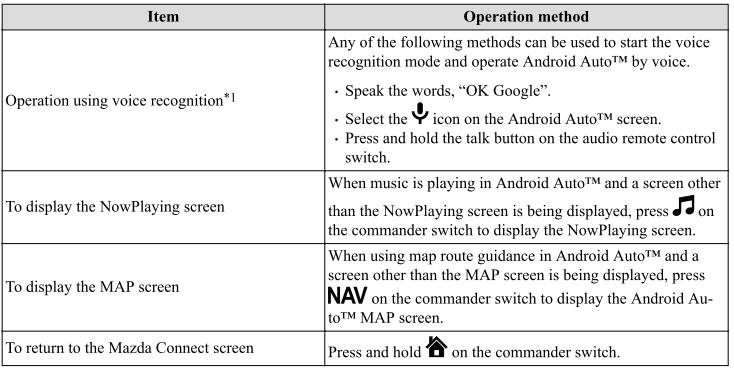

Convenient ways to use Android Auto™ mode
*1 The voice recognition function of Mazda Connect cannot be used while Android Auto™ is connected.
To end Android Auto™
To end the Android Auto™ mode, disconnect the Android™-genuine connector cord from the USB terminal or disconnect the Android™ Smartphone from the connector cord.
If Android Auto™ cannot be connected

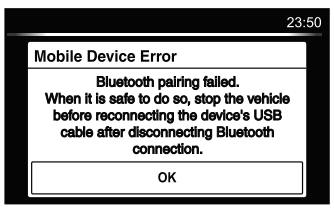

When the message, “Mobile Device Error”, is displayed and Android Auto™ cannot be connected
Make sure that the Android™ Smartphone in question is compatible with Android Auto™. Before trying to reconnect your Android™ Smartphone to the connector cord, do the Bluetooth® device pairing again.
If the Android Auto™ do not operate, please do these steps
Depending on your Android™ Smartphone, the connection setting may have been
in
charging mode only when the connector cord is connected.
In this case, switch off the Android Auto™ connection setting once, and then
switch it back
on while connected to USB mode.
The connection setting can be changed to the Android Auto™ connection in the
tab
on the Settings screen.
What is Android Auto™?
Android Auto™ is an application which allows the operation of an Android™
Smartphone
using the vehicle's audio. Android Auto™ functions such as the phone, messages,
music,
and map can be used with the vehicle's audio system...
